产品概述
牵引用铅酸蓄电池主要用于工矿企业、仓库、码头及车站使用的电动叉车、电动仓储车、电动牵引车、电动平板车、电动游艇、高尔夫球车、电动观光车、电动游览车、电动警车、电动休闲车等等作为直流电源,也可作为其它方面的配套直流电源。

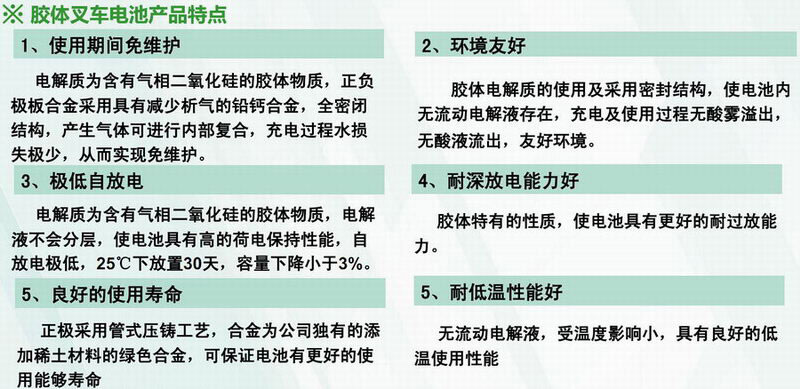

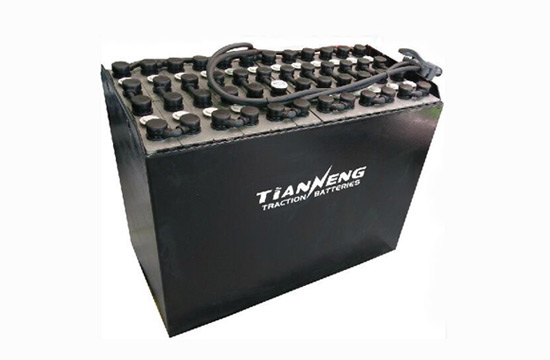

胶体叉车电池主要特点

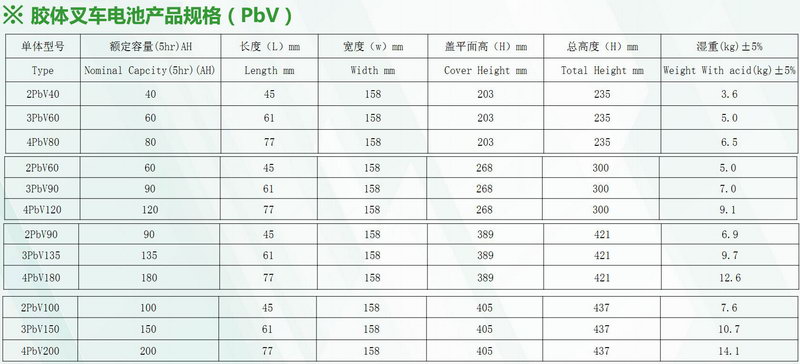

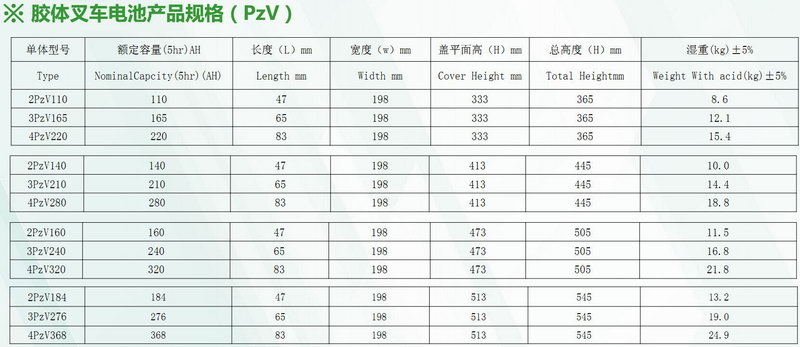

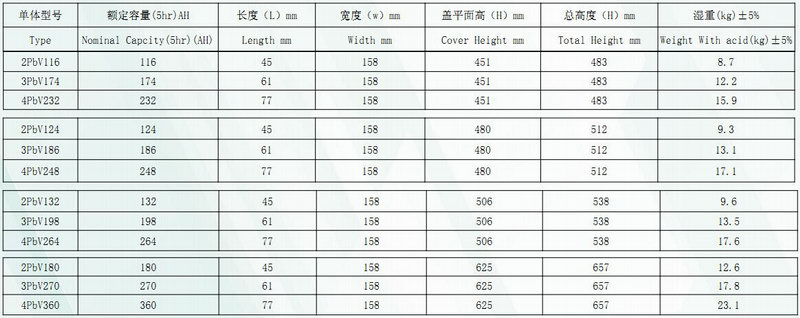

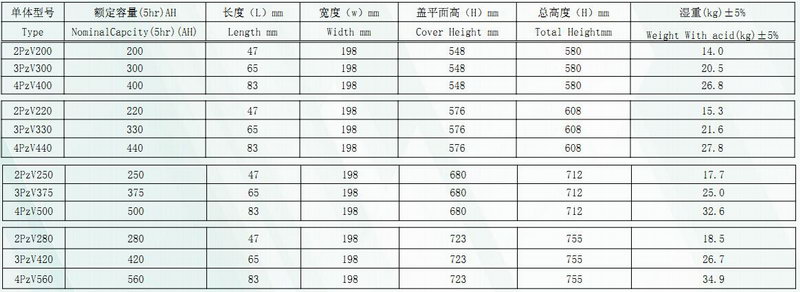

胶体叉车电池产品规格

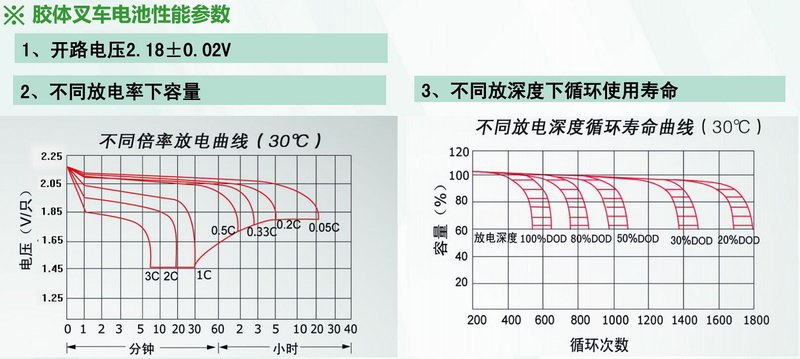

胶体叉车电池性能参数

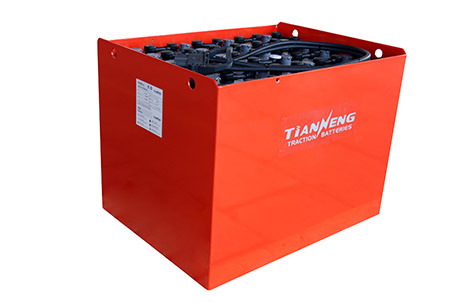

电动叉车电池主要特点
1、按照DIN标准与BS标准设计电池
设计超1500次充放电循环寿命。
2、电池一致性好
引进德国管式电池核心生产设备,HADI公司全自动正极板生产线,EIRICH全自动真空和膏机,INBATEC全自动酸循环化成设备,高端稳定的设备使得电池的一致性非常高。
3、多元耐腐合金
板栅合金采用多元耐腐合金,失水更少,寿命更长。
4、隔板采用袖套式结构
大大降低电池内部短路的几率。
5、采用完美型软连接
电池的安装维护更加方便、环保。
6、先进的极板固化、化成工艺
采用先进的极板固化、化成工艺,以提高活性物质与板栅的结合力,延长电池使用寿命。
7、关键零部件采用进口材料
电池内部的高性能无纺布排管,PE隔板,连接条均采用进口高端品牌。
电动叉车规格型号参数表
执行标准:DIN EN 60254-1/2
单体型号 |
额定容量(5hr)AH |
长度(L)mm |
宽度(w)mm |
盖平面高(H)mm |
总高度(H)mm |
湿重(kg)±5% |
Type |
Nominal Capcity(5hr)(AH) |
Length mm |
Width mm |
Cover Height mm |
Total Height mm |
Weight With acid(kg)±5% |
2PzS120 |
120 |
47 |
198 |
333 |
365 |
8.6 |
3PzS180 |
180 |
65 |
198 |
333 |
365 |
12.1 |
4PzS240 |
240 |
83 |
198 |
333 |
365 |
15.4 |
5PzS300 |
300 |
101 |
198 |
333 |
365 |
19.3 |
6PzS360 |
360 |
119 |
198 |
333 |
365 |
22.4 |
7PzS420 |
420 |
137 |
198 |
333 |
365 |
26 |
8PzS480 |
480 |
155 |
198 |
333 |
365 |
29.7 |
9PzS540 |
540 |
174 |
198 |
333 |
365 |
33.4 |
10PzS600 |
600 |
192 |
198 |
333 |
365 |
36.6 |
|
|
|
|
|
|
|
2PzS160 |
160 |
47 |
198 |
413 |
445 |
10.0 |
3PzS240 |
240 |
65 |
198 |
413 |
445 |
14.4 |
4PzS320 |
320 |
83 |
198 |
413 |
445 |
18.8 |
5PzS400 |
400 |
101 |
198 |
413 |
445 |
23.2 |
6PzS480 |
480 |
119 |
198 |
413 |
445 |
27.6 |
7PzS560 |
560 |
137 |
198 |
413 |
445 |
32.0 |
8PzS640 |
640 |
155 |
198 |
413 |
445 |
36.4 |
9PzS720 |
720 |
174 |
198 |
413 |
445 |
40.8 |
10PzS800 |
800 |
192 |
198 |
413 |
445 |
45.2 |
|
|
|
|
|
|
|
2PzS180 |
180 |
47 |
198 |
473 |
505 |
11.5 |
3PzS270 |
270 |
65 |
198 |
473 |
505 |
16.8 |
4PzS360 |
360 |
83 |
198 |
473 |
505 |
21.8 |
5PzS450 |
450 |
101 |
198 |
473 |
505 |
26.9 |
6PzS540 |
540 |
119 |
198 |
473 |
505 |
32.0 |
7PzS630 |
630 |
137 |
198 |
473 |
505 |
37.0 |
8PzS720 |
720 |
155 |
198 |
473 |
505 |
42.1 |
9PzS810 |
810 |
174 |
198 |
473 |
505 |
47.1 |
10PzS900 |
900 |
192 |
198 |
473 |
505 |
52.2 |
|
|
|
|
|
|
|
2PzS210 |
210 |
47 |
198 |
513 |
545 |
13.2 |
3PzS315 |
315 |
65 |
198 |
513 |
545 |
19.0 |
4PzS420 |
420 |
83 |
198 |
513 |
545 |
24.9 |
5PzS525 |
525 |
101 |
198 |
513 |
545 |
30.5 |
6PzS630 |
630 |
119 |
198 |
513 |
545 |
36.1 |
7PzS735 |
735 |
137 |
198 |
513 |
545 |
41.8 |
8PzS840 |
840 |
155 |
198 |
513 |
545 |
47.6 |
9PzS945 |
945 |
174 |
198 |
513 |
545 |
53.4 |
10PzS1050 |
1050 |
192 |
198 |
513 |
545 |
58.4 |
单体型号 |
额定容量(5hr)AH |
长度(L)mm |
宽度(w)mm |
盖平面高(H)mm |
总高度(H)mm |
湿重(kg)±5% |
Type |
Nominal Capcity(5hr)(AH) |
Length mm |
Width mm |
Cover Height mm |
Total Height mm |
Weight With acid(kg)±5% |
2PzS230 |
230 |
47 |
198 |
548 |
580 |
14.0 |
3PzS345 |
345 |
65 |
198 |
548 |
580 |
20.5 |
4PzS460 |
460 |
83 |
198 |
548 |
580 |
26.8 |
5PzS575 |
575 |
101 |
198 |
548 |
580 |
32.7 |
6PzS690 |
690 |
119 |
198 |
548 |
580 |
39.0 |
7PzS805 |
805 |
137 |
198 |
548 |
580 |
45.2 |
8PzS920 |
920 |
155 |
198 |
548 |
580 |
51.4 |
9PzS1035 |
1035 |
174 |
198 |
548 |
580 |
57.2 |
10PzS1150 |
1150 |
192 |
198 |
548 |
580 |
63.4 |
|
|
|
|
|
|
|
2PzS240 |
240 |
47 |
198 |
573 |
605 |
14.7 |
3PzS360 |
360 |
65 |
198 |
573 |
605 |
21.2 |
4PzS480 |
480 |
83 |
198 |
573 |
605 |
27.3 |
5PzS600 |
600 |
101 |
198 |
573 |
605 |
33.7 |
6PzS720 |
720 |
119 |
198 |
573 |
605 |
39.9 |
7PzS840 |
840 |
137 |
198 |
573 |
605 |
46.8 |
8PzS960 |
960 |
155 |
198 |
573 |
605 |
52.9 |
9PzS1080 |
1080 |
174 |
198 |
573 |
605 |
59.4 |
10PzS1200 |
1200 |
192 |
198 |
573 |
605 |
65.4 |
|
|
|
|
|
|
|
2PzS250 |
250 |
47 |
198 |
576 |
608 |
15.3 |
3PzS375 |
375 |
65 |
198 |
576 |
608 |
21.6 |
4PzS500 |
500 |
83 |
198 |
576 |
608 |
27.8 |
5PzS625 |
625 |
101 |
198 |
576 |
608 |
34.3 |
6PzS750 |
750 |
119 |
198 |
576 |
608 |
40.7 |
7PzS875 |
875 |
137 |
198 |
576 |
608 |
47.6 |
8PzS1000 |
1000 |
155 |
198 |
576 |
608 |
53.7 |
9PzS1125 |
1125 |
174 |
198 |
576 |
608 |
60.2 |
10PzS1250 |
1250 |
192 |
198 |
576 |
608 |
66.6 |
|
|
|
|
|
|
|
2PzS280 |
280 |
47 |
198 |
680 |
712 |
17.7 |
3PzS420 |
420 |
65 |
198 |
680 |
712 |
25.0 |
4PzS560 |
560 |
83 |
198 |
680 |
712 |
32.6 |
5PzS700 |
700 |
101 |
198 |
680 |
712 |
39.9 |
6PzS840 |
840 |
119 |
198 |
680 |
712 |
47.2 |
7PzS980 |
980 |
137 |
198 |
680 |
712 |
54.3 |
8PzS1120 |
1120 |
155 |
198 |
680 |
712 |
62.0 |
9PzS1260 |
1260 |
174 |
198 |
680 |
712 |
69.5 |
10PzS1400 |
1400 |
192 |
198 |
680 |
712 |
77.2 |
|
|
|
|
|
|
|
2PzS300 |
300 |
47 |
198 |
680 |
712 |
18.1 |
3PzS450 |
450 |
65 |
198 |
680 |
712 |
25.5 |
4PzS600 |
600 |
83 |
198 |
680 |
712 |
33.0 |
5PzS750 |
750 |
101 |
198 |
680 |
712 |
40.6 |
6PzS900 |
900 |
119 |
198 |
680 |
712 |
47.9 |
7PzS1050 |
1050 |
137 |
198 |
680 |
712 |
55.1 |
8PzS1200 |
1200 |
155 |
198 |
680 |
712 |
62.8 |
9PzS1350 |
1350 |
174 |
198 |
680 |
712 |
70.5 |
10PzS1500 |
1500 |
192 |
198 |
680 |
712 |
78.2 |
|
|
|
|
|
|
|
2PzS310 |
310 |
47 |
198 |
723 |
755 |
18.5 |
3PzS465 |
465 |
65 |
198 |
723 |
755 |
26.7 |
4PzS620 |
620 |
83 |
198 |
723 |
755 |
34.9 |
5PzS775 |
775 |
101 |
198 |
723 |
755 |
43.1 |
6PzS930 |
930 |
119 |
198 |
723 |
755 |
51.2 |
7PzS1085 |
1085 |
137 |
198 |
723 |
755 |
59.4 |
8PzS1240 |
1240 |
155 |
198 |
723 |
755 |
67.6 |
9PzS1395 |
1395 |
174 |
198 |
723 |
755 |
75.7 |
10PzS1550 |
1550 |
192 |
198 |
723 |
755 |
83.9 |
|
|
|
|
|
|
|
2PzS280L |
280 |
47 |
198 |
680 |
712 |
17.4 |
3PzS420L |
420 |
65 |
198 |
680 |
712 |
24.6 |
4PzS560L |
560 |
83 |
198 |
680 |
712 |
32.1 |
5PzS700L |
700 |
101 |
198 |
680 |
712 |
39.3 |
6PzS840L |
840 |
119 |
198 |
680 |
712 |
46.4 |
7PzS980L |
980 |
137 |
198 |
680 |
712 |
53.5 |
8PzS1120L |
1120 |
155 |
198 |
680 |
712 |
61.1 |
9PzS1260L |
1260 |
174 |
198 |
680 |
712 |
68.5 |
10PzS1400L |
1400 |
192 |
198 |
680 |
712 |
76.0 |
执行标准:BS EN 60254-1/2
单体型号 |
额定容量(5hr)AH |
长度(L)mm |
宽度(w)mm |
盖平面高(H)mm |
总高度(H)mm |
湿重(kg)±5% |
Type |
Nominal Capcity(5hr)(AH) |
Length mm |
Width mm |
Cover Height mm |
Total Height mm |
Weight With acid(kg)±5% |
2PzB50 |
50 |
45 |
158 |
203 |
235 |
3.6 |
3PzB75 |
75 |
61 |
158 |
203 |
235 |
5.0 |
4PzB100 |
100 |
77 |
158 |
203 |
235 |
6.5 |
5PzB125 |
125 |
93 |
158 |
203 |
235 |
7.9 |
6PzB150 |
150 |
109 |
158 |
203 |
235 |
9.4 |
7PzB175 |
175 |
125 |
158 |
203 |
235 |
10.9 |
8PzB200 |
200 |
141 |
158 |
203 |
235 |
12.3 |
9PzB225 |
225 |
157 |
158 |
203 |
235 |
13.8 |
10PzB250 |
250 |
173 |
158 |
203 |
235 |
15.2 |
|
|
|
|
|
|
|
2PzB70 |
70 |
45 |
158 |
268 |
300 |
5.0 |
3PzB105 |
105 |
61 |
158 |
268 |
300 |
7.0 |
4PzB140 |
140 |
77 |
158 |
268 |
300 |
9.1 |
5PzB175 |
175 |
93 |
158 |
268 |
300 |
11.1 |
6PzB210 |
210 |
109 |
158 |
268 |
300 |
13.2 |
7PzB245 |
245 |
125 |
158 |
268 |
300 |
15.3 |
8PzB280 |
280 |
141 |
158 |
268 |
300 |
17.4 |
9PzB315 |
315 |
157 |
158 |
268 |
300 |
19.4 |
10PzB350 |
350 |
173 |
158 |
268 |
300 |
21.5 |
|
|
|
|
|
|
|
2PzB100 |
100 |
45 |
158 |
389 |
421 |
6.9 |
3PzB150 |
150 |
61 |
158 |
389 |
421 |
9.7 |
4PzB200 |
200 |
77 |
158 |
389 |
421 |
12.6 |
5PzB250 |
250 |
93 |
158 |
389 |
421 |
15.5 |
6PzB300 |
300 |
109 |
158 |
389 |
421 |
18.4 |
7PzB350 |
350 |
125 |
158 |
389 |
421 |
21.3 |
8PzB400 |
400 |
141 |
158 |
389 |
421 |
24.1 |
9PzB450 |
450 |
157 |
158 |
389 |
421 |
27.0 |
10PzB500 |
500 |
173 |
158 |
389 |
421 |
29.9 |
|
|
|
|
|
|
|
2PzB110 |
110 |
45 |
158 |
405 |
437 |
7.6 |
3PzB165 |
165 |
61 |
158 |
405 |
437 |
10.7 |
4PzB220 |
220 |
77 |
158 |
405 |
437 |
14.1 |
5PzB275 |
275 |
93 |
158 |
405 |
437 |
16.9 |
6PzB330 |
330 |
109 |
158 |
405 |
437 |
20.0 |
7PzB385 |
385 |
125 |
158 |
405 |
437 |
22.7 |
8PzB440 |
440 |
141 |
158 |
405 |
437 |
25.8 |
9PzB495 |
495 |
157 |
158 |
405 |
437 |
28.9 |
10PzB550 |
550 |
173 |
158 |
405 |
437 |
32.5 |
单体型号 |
额定容量(5hr)AH |
长度(L)mm |
宽度(w)mm |
盖平面高(H)mm |
总高度(H)mm |
湿重(kg)±5% |
Type |
Nominal Capcity(5hr)(AH) |
Length mm |
Width mm |
Cover Height mm |
Total Height mm |
Weight With acid(kg)±5% |
2PzB130 |
130 |
45 |
158 |
451 |
483 |
8.7 |
3PzB195 |
195 |
61 |
158 |
451 |
483 |
12.2 |
4PzB260 |
260 |
77 |
158 |
451 |
483 |
15.9 |
5PzB325 |
325 |
93 |
158 |
451 |
483 |
19.3 |
6PzB390 |
390 |
109 |
158 |
451 |
483 |
22.8 |
7PzB455 |
455 |
125 |
158 |
451 |
483 |
26.5 |
8PzB520 |
520 |
141 |
158 |
451 |
483 |
30.0 |
9PzB585 |
585 |
157 |
158 |
451 |
483 |
33.3 |
10PzB650 |
650 |
173 |
158 |
451 |
483 |
37.6 |
|
|
|
|
|
|
|
2PzB140 |
140 |
45 |
158 |
480 |
512 |
9.3 |
3PzB210 |
210 |
61 |
158 |
480 |
512 |
13.1 |
4PzB280 |
280 |
77 |
158 |
480 |
512 |
17.1 |
5PzB350 |
350 |
93 |
158 |
480 |
512 |
21.1 |
6PzB420 |
420 |
109 |
158 |
480 |
512 |
25.1 |
7PzB490 |
490 |
125 |
158 |
480 |
512 |
29.1 |
8PzB560 |
560 |
141 |
158 |
480 |
512 |
33.1 |
9PzB630 |
630 |
157 |
158 |
480 |
512 |
37.1 |
10PzB700 |
700 |
173 |
158 |
480 |
512 |
41.0 |
|
|
|
|
|
|
|
2PzB150 |
150 |
45 |
158 |
506 |
538 |
9.6 |
3PzB225 |
225 |
61 |
158 |
506 |
538 |
13.5 |
4PzB300 |
300 |
77 |
158 |
506 |
538 |
17.6 |
5PzB375 |
375 |
93 |
158 |
506 |
538 |
21.6 |
6PzB450 |
450 |
109 |
158 |
506 |
538 |
25.7 |
7PzB525 |
525 |
125 |
158 |
506 |
538 |
29.8 |
8PzB600 |
600 |
141 |
158 |
506 |
538 |
33.9 |
9PzB675 |
675 |
157 |
158 |
506 |
538 |
38.0 |
10PzB750 |
750 |
173 |
158 |
506 |
538 |
42.0 |
|
|
|
|
|
|
|
2PzB200 |
200 |
45 |
158 |
625 |
657 |
12.6 |
3PzB300 |
300 |
61 |
158 |
625 |
657 |
17.8 |
4PzB400 |
400 |
77 |
158 |
625 |
657 |
23.1 |
5PzB500 |
500 |
93 |
158 |
625 |
657 |
28.3 |
6PzB600 |
600 |
109 |
158 |
625 |
657 |
33.6 |
7PzB700 |
700 |
125 |
158 |
625 |
657 |
38.9 |
8PzB800 |
800 |
141 |
158 |
625 |
657 |
44.3 |
9PzB900 |
900 |
157 |
158 |
625 |
657 |
49.6 |
10PzB1000 |
1000 |
173 |
158 |
625 |
657 |
55.0 |
|
|
|
|
|
|
|
2PzB200L |
200 |
45 |
158 |
625 |
657 |
12.4 |
3PzB300L |
300 |
61 |
158 |
625 |
657 |
17.5 |
4PzB400L |
400 |
77 |
158 |
625 |
657 |
22.7 |
5PzB500L |
500 |
93 |
158 |
625 |
657 |
27.9 |
6PzB600L |
600 |
109 |
158 |
625 |
657 |
33.1 |
7PzB700L |
700 |
125 |
158 |
625 |
657 |
38.3 |
8PzB800L |
800 |
141 |
158 |
625 |
657 |
43.6 |
9PzB900L |
900 |
157 |
158 |
625 |
657 |
48.8 |
10PzB1000L |
1000 |
173 |
158 |
625 |
657 |
54.1 |

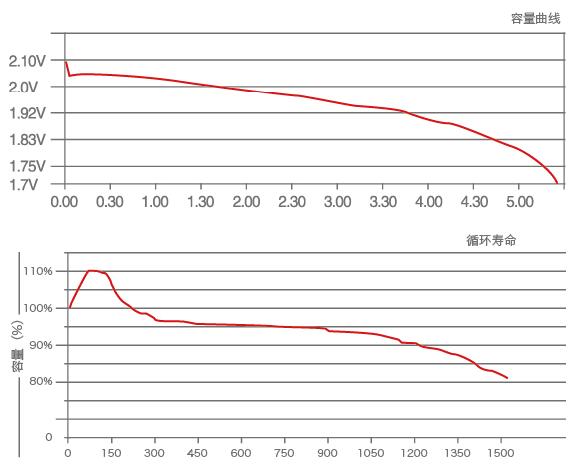

技术特性曲线
